#129: PVGE 150S1 Crescent x Cover Conveyor Belt

This versatile, 150 PIW belt offers excellent service in a wide variety of light duty applications as well as grain elevator. The all-polyester carcass provides low-stretch and excellent fastener retention. The special PVGE compound provides moderate oil resistance and low temperature capabilities. The belt construction meets and exceeds safety standards established by OSHA for static conductivity and MSHA for flame-retardant properties.

PLIES: 1 | TOP COVER: BLACK CRESCENT | BOTTOM COVER: BLACK

Description

TECHNICAL DATA

BELT THICKNESS: 6.98 mm 0.275″
PULLEY DIAMETER (MIN.): 63 mm 2.5″
PULLEY DIAMETER (MIN.) BACK FLEXING: mm
BELT WEIGHT: 6.1 kg/m² 1.25 lb/ft²
PRODUCTION WIDTH: 1829 72″
BREAKING STRENGTH:
TENSION FOR 1% ELONGATION: 150 lbs/in
MAX. ADMISSIBLE BELT TENSION (EQUAL TO 1.8% STRETCH):
OPERATING TEMPERATURE: -7° to 82° C 20° to 180° F

BELT CONSTRUCTION

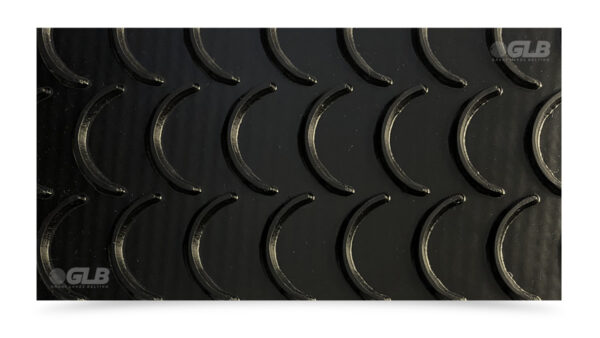

TOP MATERIAL COVER:
SURFACE FINISH: Crescent
PROPERTY:
COLOR: Black

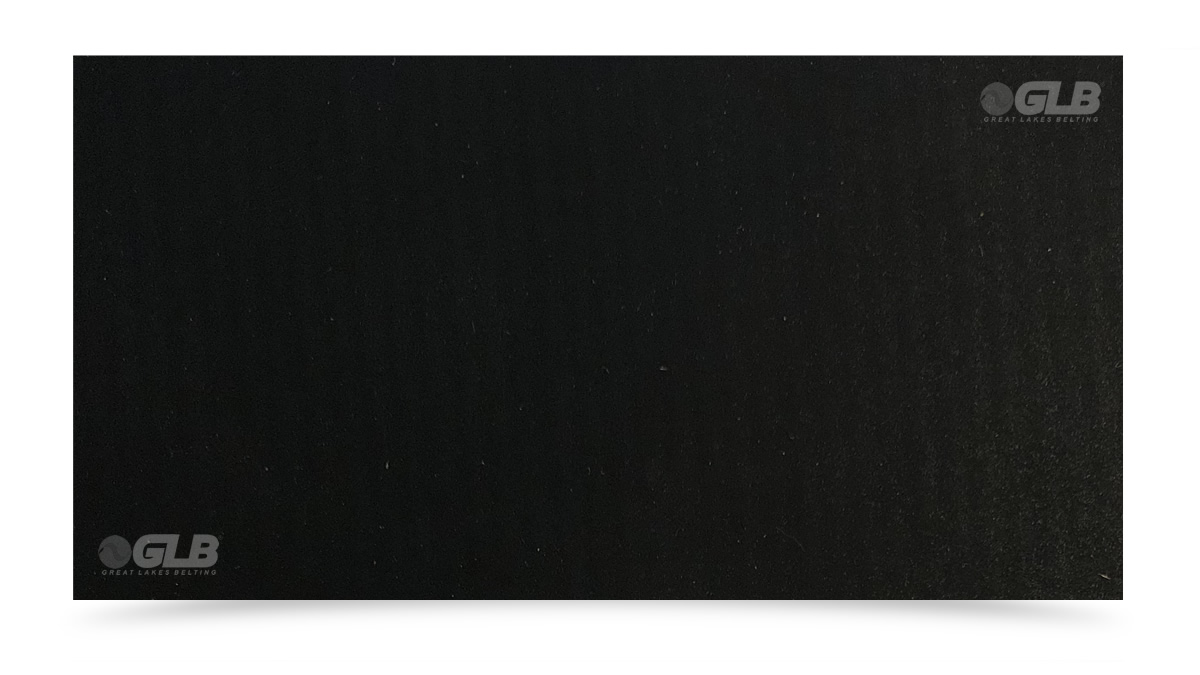

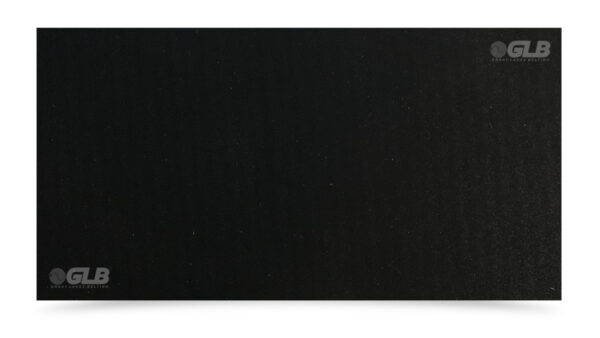

BOTTOM COVER MATERIAL:
SURFACE FINISH: Smooth
COLOR: Black

BELT FABRIC

TOP PLY: POLYESTER SPUN
INNER PLIES:
BOTTOM PLY:
TOTAL NO. OF PLIES 1

BELT CHARACTERISTICS

YES
NO
Permanently Anti-Static
Nosebar Suitable
Powerturn Suitable
Slider Bed Suitable
Troughed Application Suitable
FDA / USDA Approved
Low Noise
Flame Retardant
Suitable for Metal Detector
Abrasion Resistant

Additional information

Color

Black

Ply

1
